When setting up your office, safety and efficiency are paramount. Circuit breakers are crucial in safeguarding electrical circuits from overloads and short circuits. One type of circuit breaker that has gained popularity due to its secure installation and reliable performance is the bolt-on type circuit breaker. This guide will delve into the intricacies of bolt-on type circuit breakers and provide insights into choosing the right one for your electrical needs.
Table of Contents
Understanding Bolt-On-Type Circuit Breakers

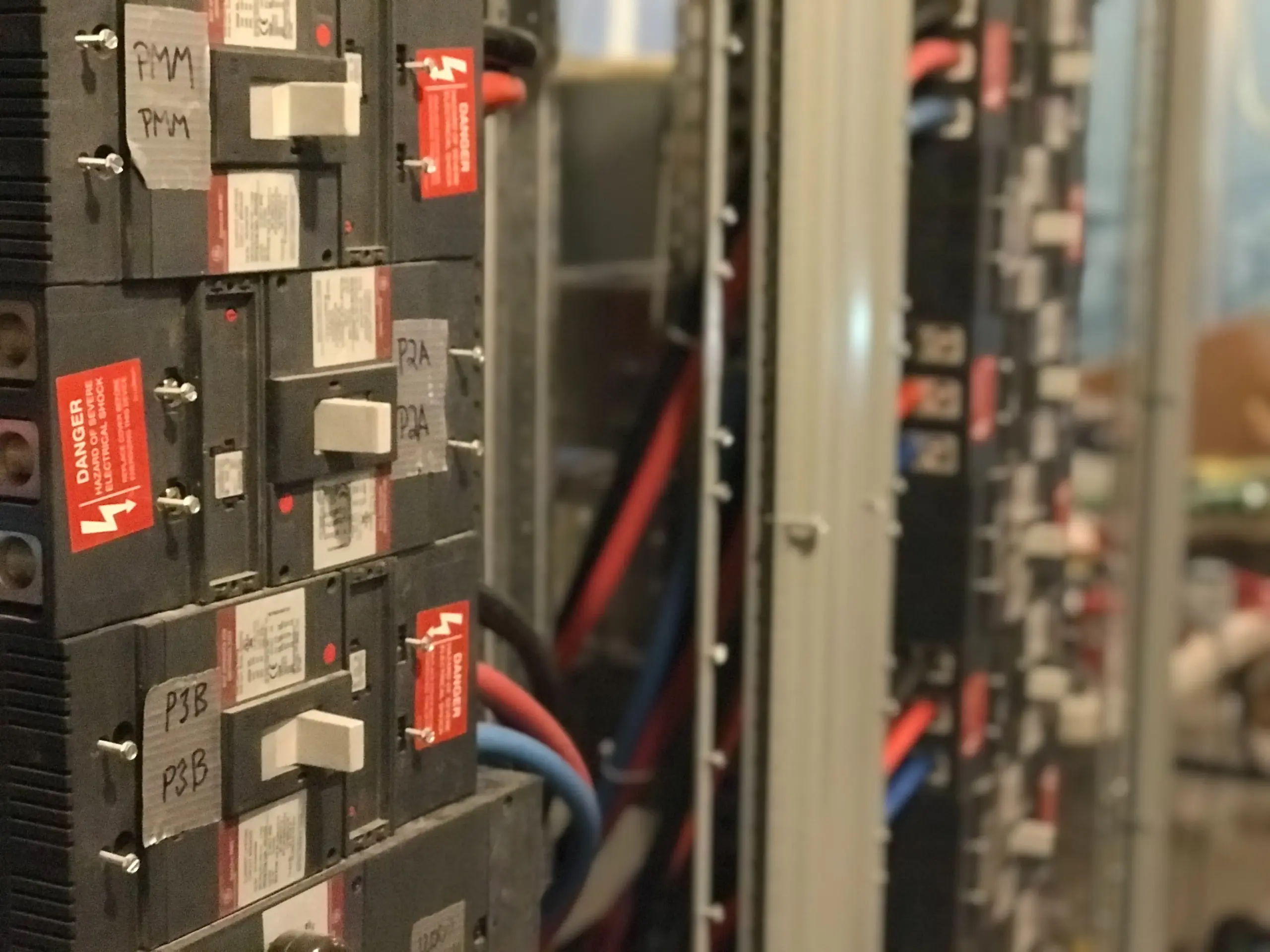

Bolt on type circuit breakers are a subset of circuit protection devices designed to securely fasten to a panelboard or an electrical enclosure using bolts or screws. Unlike their counterpart, the “plug-in” circuit breakers, which are directly inserted into bus bars, bolt-on breakers require manual fastening, providing a robust and fixed connection. This feature ensures a safer and more reliable connection, making them suitable for demanding applications where stability is paramount.
These circuit breakers consist of several components that collectively contribute to their functionality:
- Frame and Case: The outer housing of the bolt-on circuit breaker is built to withstand mechanical stress and protect the internal components. This sturdy construction ensures the breaker can endure the rigors of different environments.
- Operating Mechanism: Bolt-on breakers typically employ a toggle or a lever for switching the circuit on and off. This mechanism is designed for ease of use and is usually clearly visible on the front face of the breaker.
- Tripping Mechanism: The tripping mechanism detects overloads and short circuits. It comprises thermal and magnetic elements that respond to different types of faults. The thermal part reacts to prolonged current overloads, while the magnetic element quickly responds to high current surges.
Choosing the Right Bolt On Type Circuit Breaker
Selecting the appropriate bolt-on type circuit breaker requires thoughtful consideration of various factors. Here’s a comprehensive guide to help you make an informed decision:
- Current Rating: The circuit breaker’s current rating should align with the maximum current the circuit will carry. A breaker with a too-low current rating may trip frequently, disrupting operations, while one with a too-high rating may fail to provide adequate protection during faults.
- Voltage Rating: Similar to the current rating, the circuit breaker’s voltage rating should match the circuit’s voltage. Mismatched voltage ratings can lead to hazardous situations and premature breaker failure.
- Application and Environment: Consider the application and the environment in which the circuit breaker will operate. Different industries and environments have varying demands. For instance, industrial settings require breakers capable of withstanding high vibration levels, while outdoor installations must be weather-resistant.
- Short-Circuit Current Rating (SCCR): The SCCR indicates the maximum short-circuit current that the breaker can safely interrupt. It’s crucial to ensure that the breaker’s SCCR is higher than the prospective short-circuit current of the system to prevent catastrophic failures.
- Calibration and Adjustability: If your application demands precise control over current levels, opt for a circuit breaker with adjustable tripping settings. This allows for customization while ensuring optimal circuit protection.
Conclusion
Bolt-on-type circuit breakers provide a reliable and secure means of protecting electrical circuits from overloads and short circuits. Their robust construction and manual fastening mechanism make them suitable for various industrial and residential applications. When choosing the right bolt-on type circuit breaker, factors such as current and voltage ratings, application requirements, adjustability, and compatibility should be carefully evaluated. By considering these factors and selecting breakers from reputable manufacturers, you can ensure your electrical systems’ safety, efficiency, and longevity.
